Cảm biến TTR700BMSB7B-2.0FL-CTR

Cảm biến quang

Reflex Light Grid

Roller Conveyor Sensor

Part number: 3809792

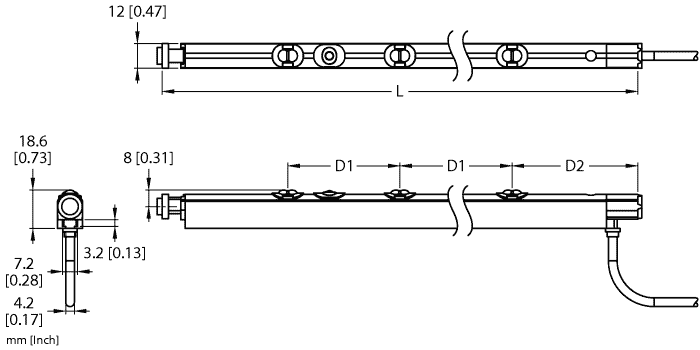

    • Overall length/frame size “L”: 700 mm
    • Infrared light beams
    • Range: 120 mm
    • Beam distance “D1”: 93.1 mm
    • Beams centered between frames
    • Operating voltage: 18…30 VDC
    • Switching output: Bimodal (PNP/NPN)
    • B-type end cap: 11-mm hexagonal shape, tip at the top and 11-mm hexagonal shape with 8-mm spring
