Cảm biến PT600R-2121-I2-KO28A2

Pressure Transmitter

With Current Output (2-Wire)

Part number: 100003604

    • For mobile hydraulic applications
    • Fully welded metal measuring cell
    • Sealless
    • With pressure tip orifice
    • Compact and robust design
    • Excellent EMC properties
    • Excellent accuracy and long-term stability
    • Kfz-Norm ISO 16750
    • Pressure range 0…600 bar rel.
    • 7.5…33 VDC
    • Analog output 4…20 mA

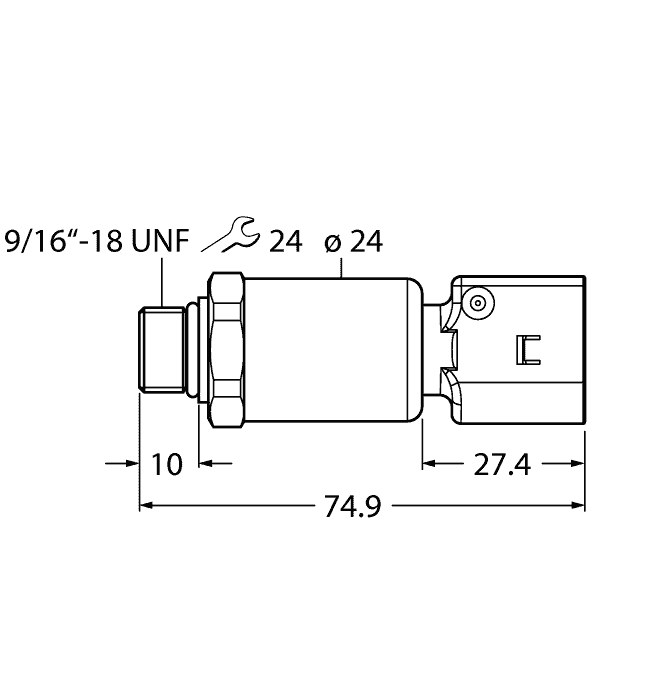

    • Process connection 9/16″-18 UNF (SAE) male thread
    • Plug-in device, Kostal SLK 2.8 A-coding
