Cảm biến PT1500PSIG-2121-U6-DT043P

Pressure Transmitter

Ratiometric Output (3-Wire)

Part number: 100017234

    • For mobile hydraulic applications
    • Fully welded metal measuring cell
    • Sealless
    • With pressure tip orifice
    • Compact and robust design
    • Excellent EMC properties
    • Excellent accuracy and long-term stability
    • Kfz-Norm ISO 16750
    • Pressure range 0…1500 psi rel.
    • 5 VDC ± 10 %
    • Ratiometric output 10…90 %

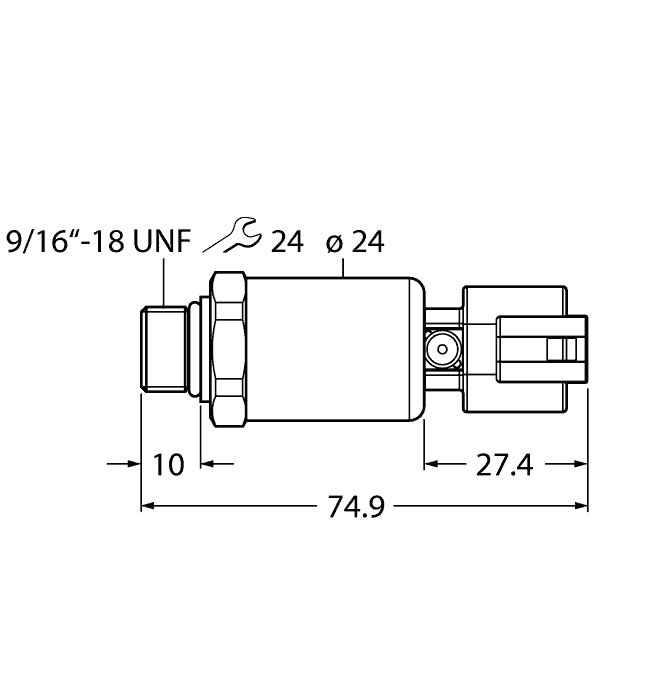

    • Process connection 9/16″-18 UNF (SAE) male thread
    • Plug-in device, Deutsch DT04-3P
