Cảm biến LE550KQP

Cảm biến tiệm quang Turck

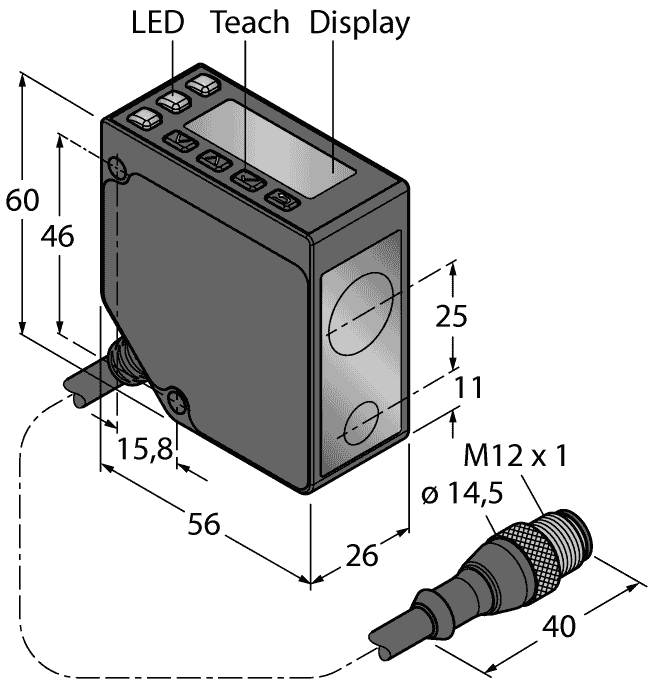

Diffuse-Mode Laser Sensor (Triangulation)

With Switching Output and IO-Link

Part number: 3097762Alternative order number : 97762

    • 2-line 8-segment display
    • Cable with male end M12 × 1, 5-pin, PVC, 150 mm
    • Range: 100…1000 mm
    • Laser class 2, red, 650 nm, acc. to IEC 60825-1:2007
    • Resolution at 100 mm – 600 mm distance: < 0.5 mm
    • Resolution at 600 mm – 1000 mm distance: < 1 mm
    • Operating voltage: 12…30 VDC
    • 1 × PNP switching output with IO-Link communication
    • Transmission of process value and parametrization via IO-link
